COMMON SPECIFICATIONS
| Power source | Power capacity | Working pressure | Max. allowed pressure | Driven system | Control system |
| AC220v±10v 50/60HZ | 0.2 | 5kgf/cm² 0.49Mpa | 8kgf/cm² 0.8Mpa | Pneumatic cylinder | SXCX-X1 |
GENERAL SPECIFICATION

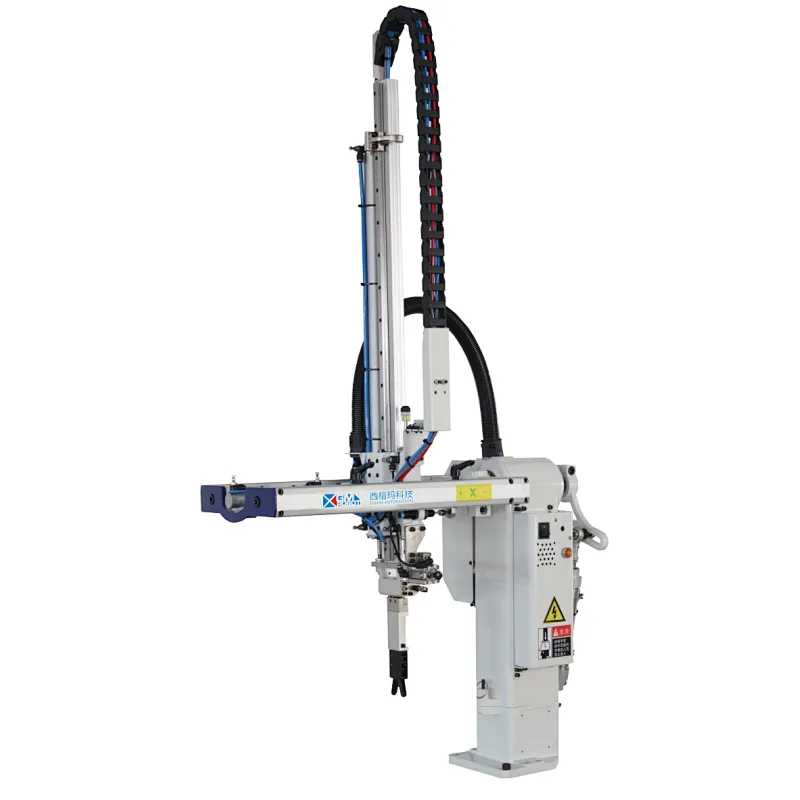

| Model | SX650V |
| Recommended IMM(Ton) | 50-180 |
| Vertical Stroke(mm) | 650 |
| Crosswise Stroke(mm) | 125 |
| Swing angle(degree) | 60-90 |
| Max loading(kg) | 2 |
| Dry take out Time(sec) | 0.8 |
| Dry cycle Time(sec) | 4.2/4.4 |
| Air consumption(NI/cycle) | 12月13日 |
| Net weight(kg) | 36/48 |
OUTER DIMENSIONS
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
| SX550 | 1330 | 1080 | 530 | 560 | 250 | 200 | 420 | 50 | 420 | 120 | 15 | 175 | 75 | 75 | 30 | 50 |
CONTROLLER & MODEL
DENOTED
SXCX-X1
CONTROLLER
Support interchange between Chinese and English.
Eight sets built-in programs.
Twelve sets TEACH programs.
Fifty sets memory for mould.
Instructions for operating time can be subtle action 0.01 seconds.
Standard inter can be connected with vertical transporter or conveyor.
Choose CE models, conformity with EUROMAP and SPI standard, enclosed standard connect interface.
MODEL DENOTED
W: Telescopic
D: Product arm + Runner arm
V: Total functional type (with vacuum generator
